BUK9880-55A,115
Manufacturer:
Nxp Semiconductors
Mfr.Part #:
BUK9880-55A,115
Datasheet:
Description:

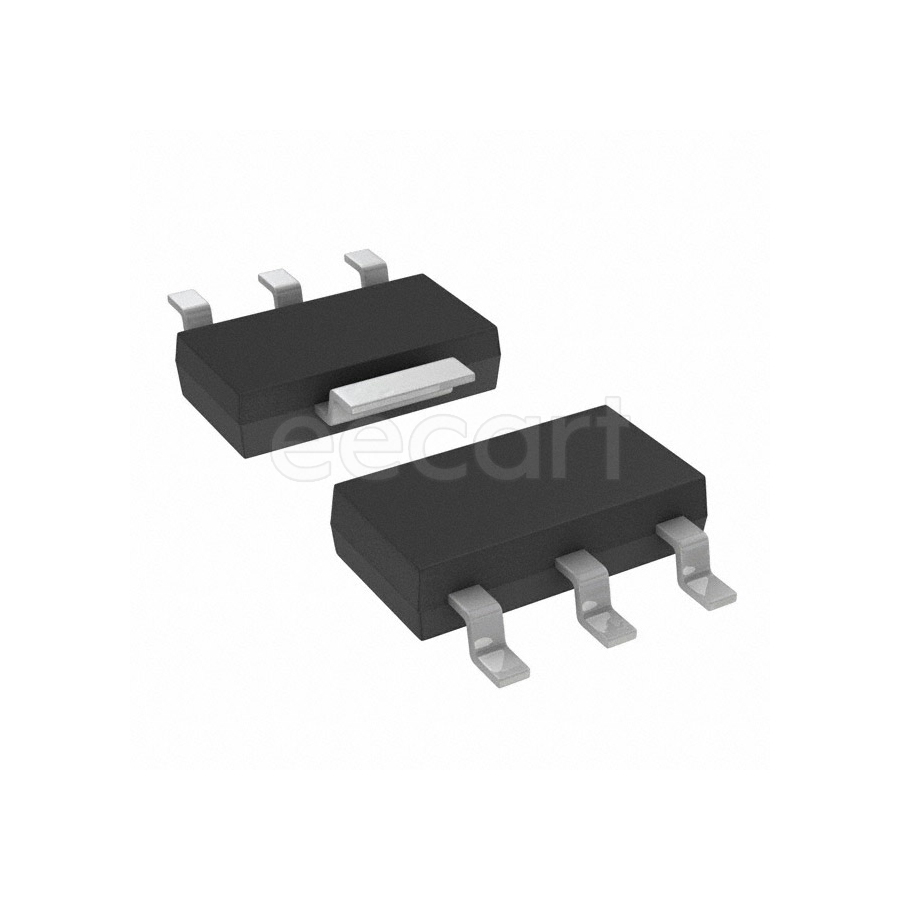

MOSFETs SC-73-3 SMD/SMT N-Channel number of channels:1 8 W 55 V Continuous Drain Current (ID):7 A 11 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Resistance | 73 MΩ |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lifecycle Status | Obsolete (Last Updated: 4 months ago) |
| Max Power Dissipation | 8 W |
| Power Dissipation | 8 W |
| Number of Channels | 1 |
| Input capacitance | 584 pF |
| Continuous Drain Current (ID) | 7 A |
| Rds On Max | 73 mΩ |
| Drain to Source Voltage (Vdss) | 55 V |
| Turn-On Delay Time | 8 ns |
| Turn-Off Delay Time | 20 ns |
| Rise Time | 118 ns |
| Gate Charge | 11 nC |
| Drain to Source Resistance | 73 mΩ |
| Max Dual Supply Voltage | 55 V |
| Gate to Source Voltage (Vgs) | 15 V |
| Drain to Source Breakdown Voltage (Vds) | 55 V |
| Gate to Source Threshold Voltage | 1 V |
| FET Type(Transistor Polarity) | N-Channel |
